Standard equipment and parameters:

LIFT AND DUMPING PARAMETERS

• Primary lift height – 3053 mm
• Secondary lift height (with extendable boom) – 3620 mm
• Maximum dump height – 2714 mm

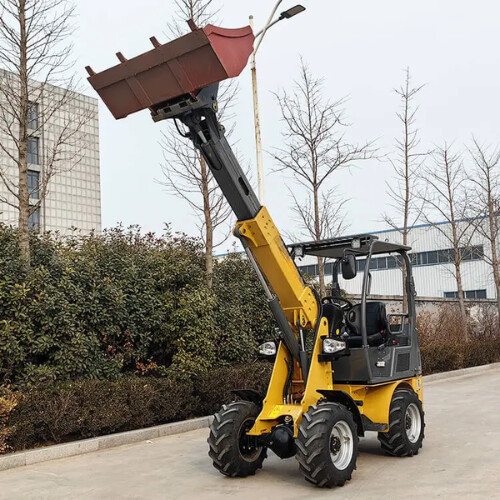

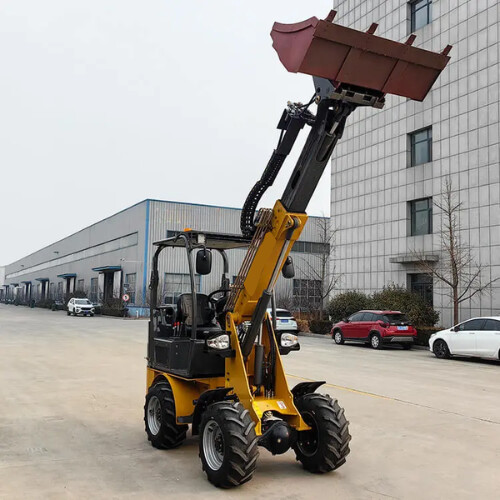

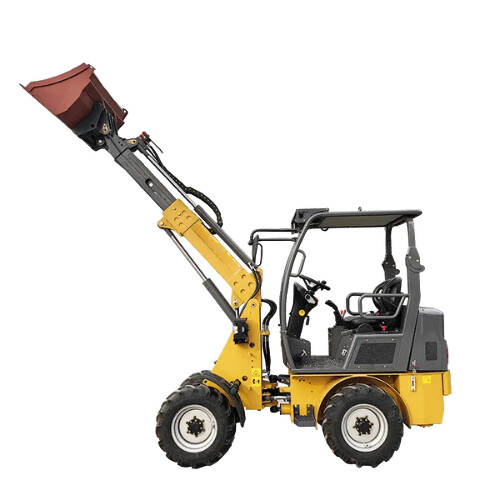

The telescopic boom allows you to reach a lifting height of up to 3.6 m, significantly expanding the range of applications compared to standard electric forklifts.

WORKING PARAMETERS

• Bucket capacity – 0.26 m³
• Maximum gradeability – 20°
• Swing angle – 8°

CHASSIS AND DIMENSIONS

• Bucket width – 1200 mm
• Wheelbase – 960 mm
• Minimum ground clearance – 210 mm
• Tires – 29×12.50–15
• Tire working pressure – 0.3 MPa
• Number of wheels – 4

BATTERY SYSTEM

• Battery model – 3-EVF-200A
• Nominal capacity (3 h mode) – 200 Ah
• Number of battery groups – 12
• System voltage – 72 V
• Operating time on a single charge – up to 4 h

Maintenance-free batteries ensure safe operation, low maintenance costs and zero emissions.

ELECTRIC POWER

• Electric motor – YQP5.72AF.48P
• Motor power – 5000 W
• Displacement – ​​14 mL/rev.

HYDRAULICS AND STEERING SYSTEM

• Steering system – fully hydraulic
• Steering pump – external gear pump
• Steering cylinder diameter – Ø65 mm
• System operating pressure – 16 MPa

EQUIPMENT AND APPLICATION

Standard equipment includes electric joystick and quick coupler. The electric drive with battery system makes the EREL1000 particularly suitable for warehouses, farms, municipal works and other environments where quiet operation and zero emissions are important. The compact dimensions combined with the telescopic boom provide high flexibility in confined working areas.
